Application Scenarios

In recent years, solar street light becomes one part of the using of solar energy, a new alternative to traditional forms of light sources, because of its environmental protection, energy saving, high efficiency and other characteristics of unparalleled quality, one came to by the general public of all ages. Applied to roads, gardens, parks, schools, and field plateau region without external power supply lighting and decoration. Change the traditional mode of saving energy, promote green lighting, highlighting the concept of sustainable development for the benefit of the world of mankind.

Technical Analysis

Solar Street light consists of solar panels, battery (lithium battery/GEL battery), controller, LED lamp and lamp base, bracket, lamp pole, floor cages, etc. Not only is it easy for transportation but also easy for installation. In the day time, the solar panels will absorb sunlight storing into battery.  As the day being darken gradually, the light will be controlled by motion sensor and start to work automatically.

538762d6 b3eb 48a0 9491 af80893dec1a


(1) PV Modules

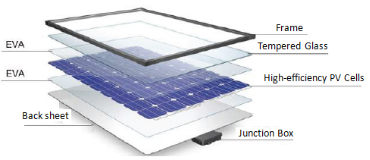

Monocrystalline silicon PV modules:

4888c93a a60a 4ba2 861d 188da0e8cf4238d79614 554a 4c79 89ac fb29e52658ac

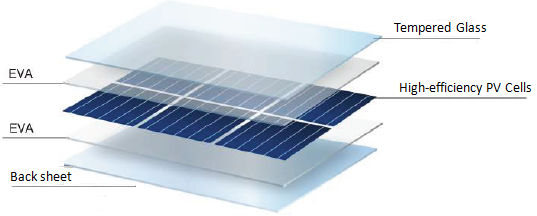

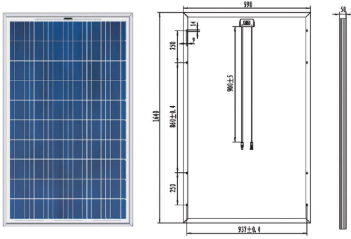

Polycrystalline silicon PV modules:

dc05666a 13ac 4d00 b022 51b1e41680b922477b92 64f8 4a86 a2b7 f1dca177b583

(2) Controller

The controller is a fully enclosed waterproofing controller. It adopts wireless remote control technology. It has no dew button anywhere. It can works under water. It is safe, waterproof, dust-proof and rust-proof.

27151521 ea58 4460 9137 c4631faab5a9

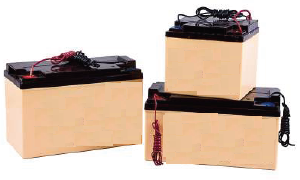

(3) GEL Battery

Lead-acid batteries have high reliability, stable quality, and no maintenance, can keep charging well, and can resist overcharge, over discharge, vibration and shock. When long-term storage, charge every 3 months, should be away from direct sunlight, corrosive gases, heat sources, sparks and so on.

8dac32a7 b85d 4560 972c 7a8a2948598c

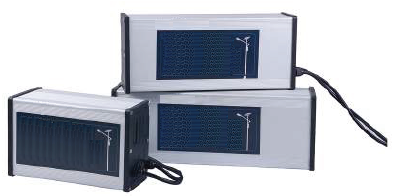

(4) Lithium Battery

Lithium iron phosphate is a non-toxic, non-polluting green energy-saving energy storage product. It does not contain any metal and rare metal, and has the characteristics of safety, long life, high temperature resistance, large capacity, light weight, no memory effect and so on.

91d6b429 e2d0 4a4c 876a 428d6d2f12ac

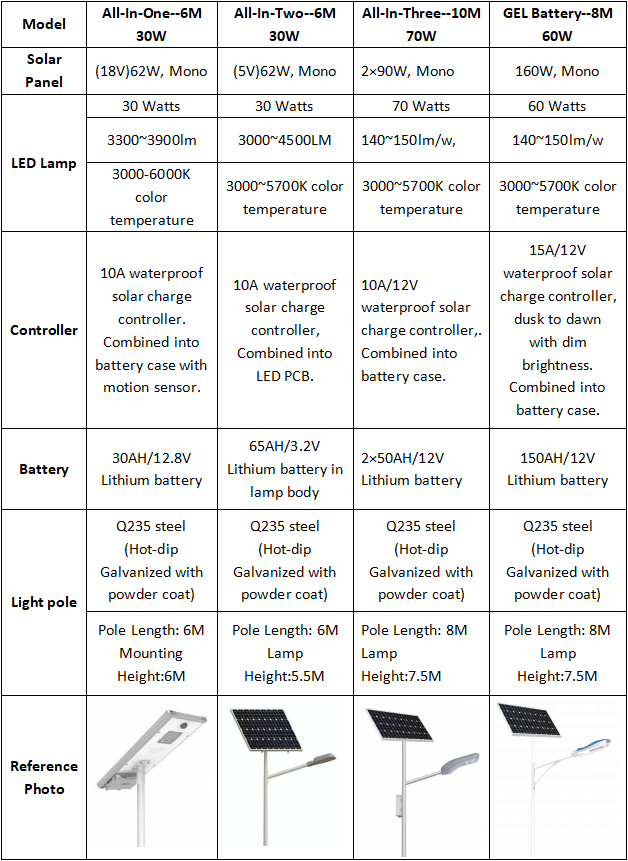

Engineering Case


9eec3957 c6e4 4487 9983 b19605ce3e14

Project cases

nha may dien dami nha may dien vinh hao

Da Mi Solar Project

  • Address: Binh Thuan, Vietnam
  • Capacity: 47.5MW

Vinh Hao Solar Project

  • Address: Binh Thuan, Vietnam
  • Capacity: 50MW
